About the Ring Lock System
The Ring Lock System is a modular scaffolding solution designed for fast assembly, dependable stability, and adaptable access on demanding work sites.
Its intuitive connection points help crews create safe, efficient working platforms for projects of every scale.
How the Ring Lock System works
Every site has specific access requirements. Our Ring Lock system is designed to deliver the strength, flexibility, and efficiency professional teams depend on.
Build securely and work with confidence.

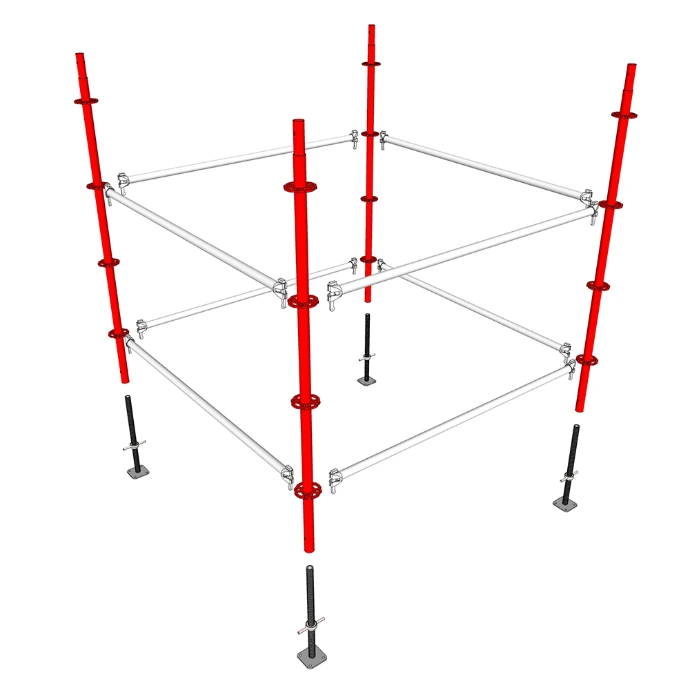

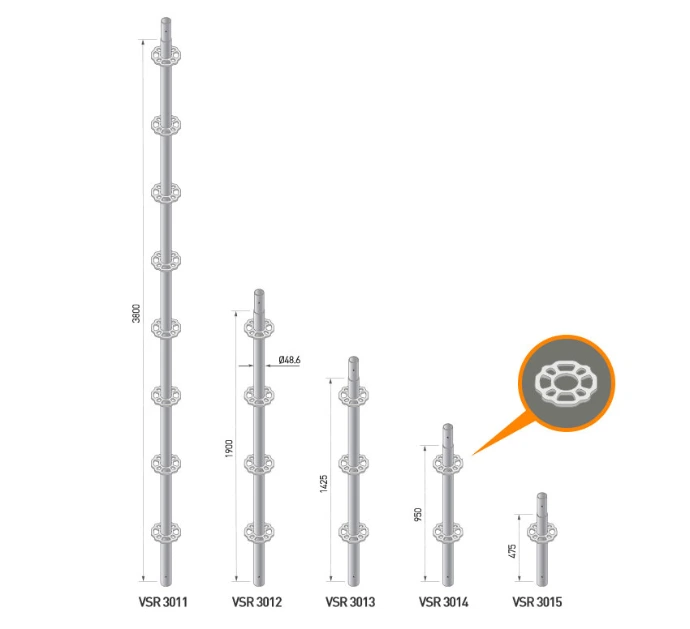

Vertical member specification (8 directions – for staging and access)
Product Name | Specifications (mm) | Weight (kg) |
|---|---|---|
VSR 3011 | ф48.6x2.3Tx3800L | 16.8 |
VSR 3012 | ф48.6x2.3Tx1900L | 8.8 |
VSR 3013 | ф48.6x2.3Tx1425L | 6.8 |
VSR 3014 | ф48.6x2.3Tx950L | 4.8 |
VSR 3015 | ф48.6x2.3Tx475L | 2.8 |

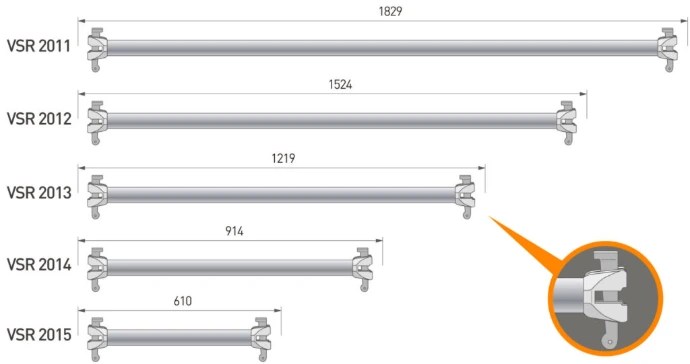

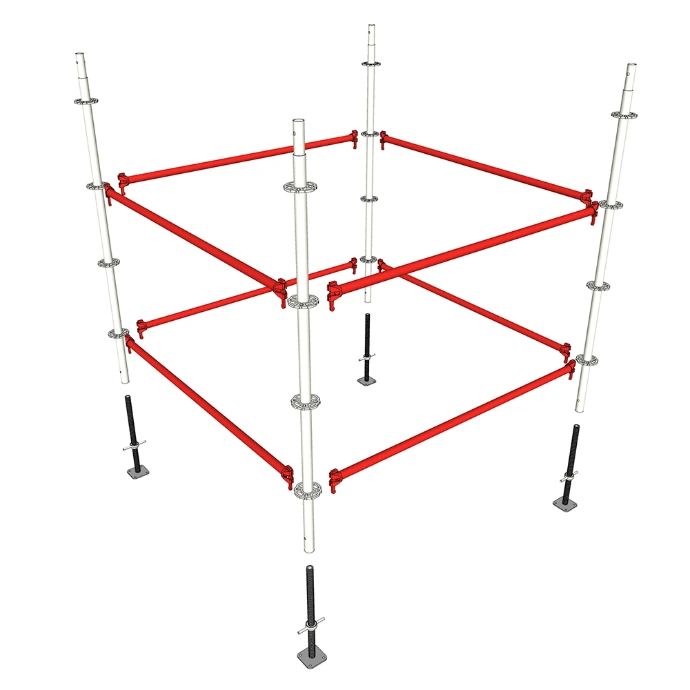

Horizontal member specification (8 directions – for staging and access)
Product Name | Specifications (mm) | Weight (kg) | Post Spacing |
|---|---|---|---|
VSR 2011 | ф42.7x2.3Tx1780L | 5.1 | 1829 |
VSR 2012 | ф42.7x2.3Tx1475L | 4.4 | 1524 |
VSR 2013 | ф42.7x2.3Tx1170L | 3.7 | 1219 |
VSR 2014 | ф42.7x2.3Tx865L | 3.0 | 914 |
VSR 2015 | ф42.7x2.3Tx561L | 2.3 | 610 |
VSR 2016 | ф42.7x2.3Tx256L | 1.6 | 305 |
